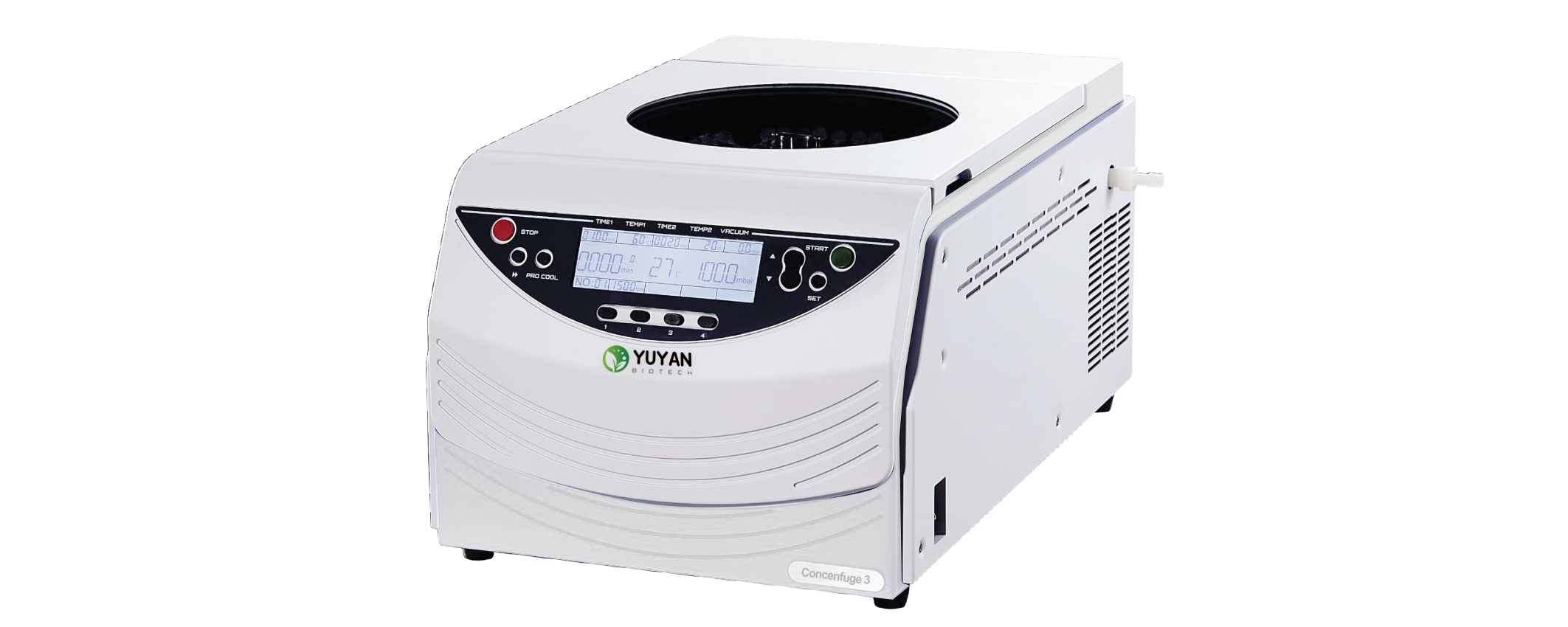

IntegratedCentrifugal
Vacuum Concentrator
Concenfuge 3

  • Hits:232
  • Time:2024-4-7

Details

The integrated centrifugal vacuum concentrator is designed with the customer first in mind, ergonomic, durable and easy to operate. The all-round heating technology ensures fast and safe concentration of DNA/RNA, oligonucleotides, proteins and other liquid samples.



Product Features

  • Space saving: built-in imported anti-corrosion diaphragm pump, standalone design
  • Anti-corrosion: centrifugal chamber is Teflon coated, vacuum pump head is made of Teflon
  • Easy operation: one button start/stop function, avoid malfunction
  • Safe operation: automated pressure relief after power off, waste gas discharging; 4 groups program shortcut key, 30 groups user-defined programs; 2-stage temperature control, protecting sample safety effectively; anti-corrosion vacuum meter, no fear of organic solvents.


Technical Parameters

Speed range

800rpm~2000rpm

Pumping speed
33L/min

Max. Centrifugal force

530×g

Noise ≤60dB(A)

Timing range

0~9999min

Power
660W

Temperature control range

Ambient+5℃~+90℃

Power supply
AC220V 50Hz/60Hz 10A

Ultimate vacuum

<13mbar

Weight
37.9KG

Dimension(L*D*H)

608×370×299mm
