Centrifugal
Vacuum Concentrator
Concenfuge 1

Vacuum control system

Made in Germany

Stable, Accurate, Efficient

New electromagnetic

drive system

High torque, Low vibration,

Corrosion resistance

Corrosion proof design

No fear of organic solvents

Fast control system

More intelligent,

accurate, efficient

Small volume, Big capacity

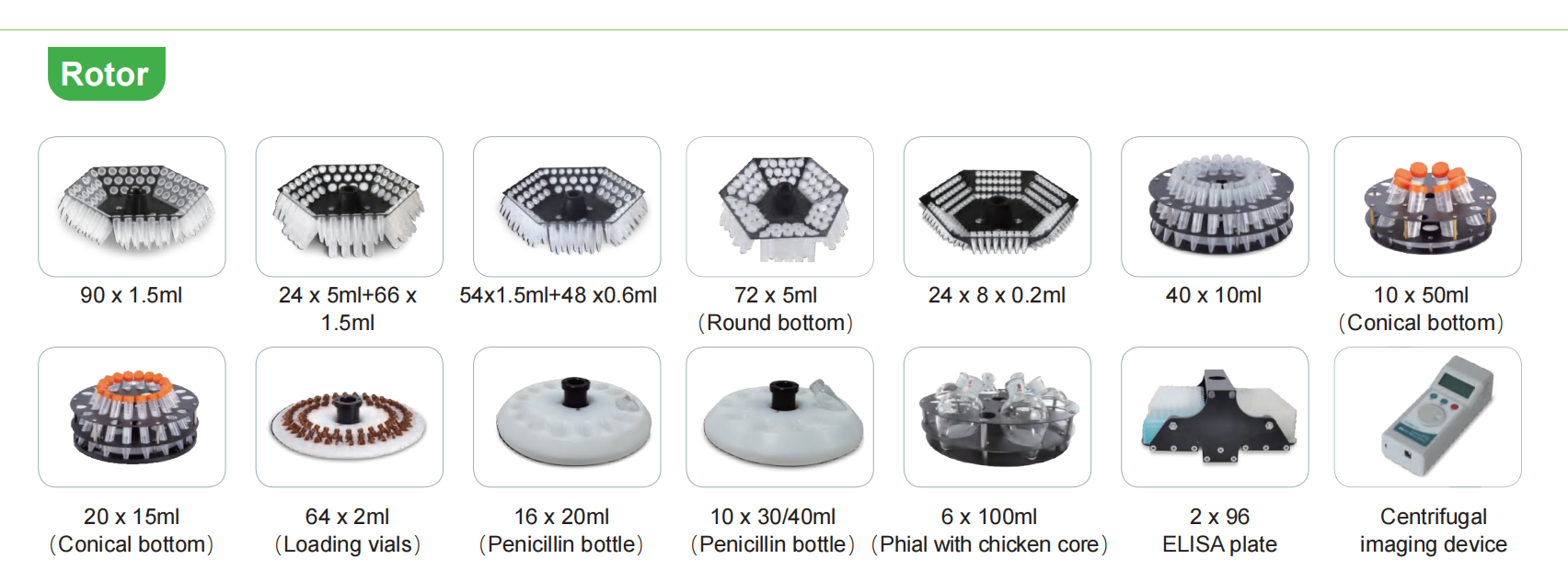

Concentrate 180 tubes at one time

1.5/2.0ml centrifugal tube

Product Features

Applicable to proteomics, genomics, molecular biology, natural product research
Fast control system, more intelligent, accurate and efficient
Standard automated vacuum control system, control range 0.1~100mbar
New electromagnetic drive system, double rotor overlay design, big volume, efficiency, low vibration
2-stage temperature control, protecting sample safety effectively
4 groups program shortcut key, 30 groups user-defined programs
Centrifugal imaging function, observing concentration progress without power off the concentrator

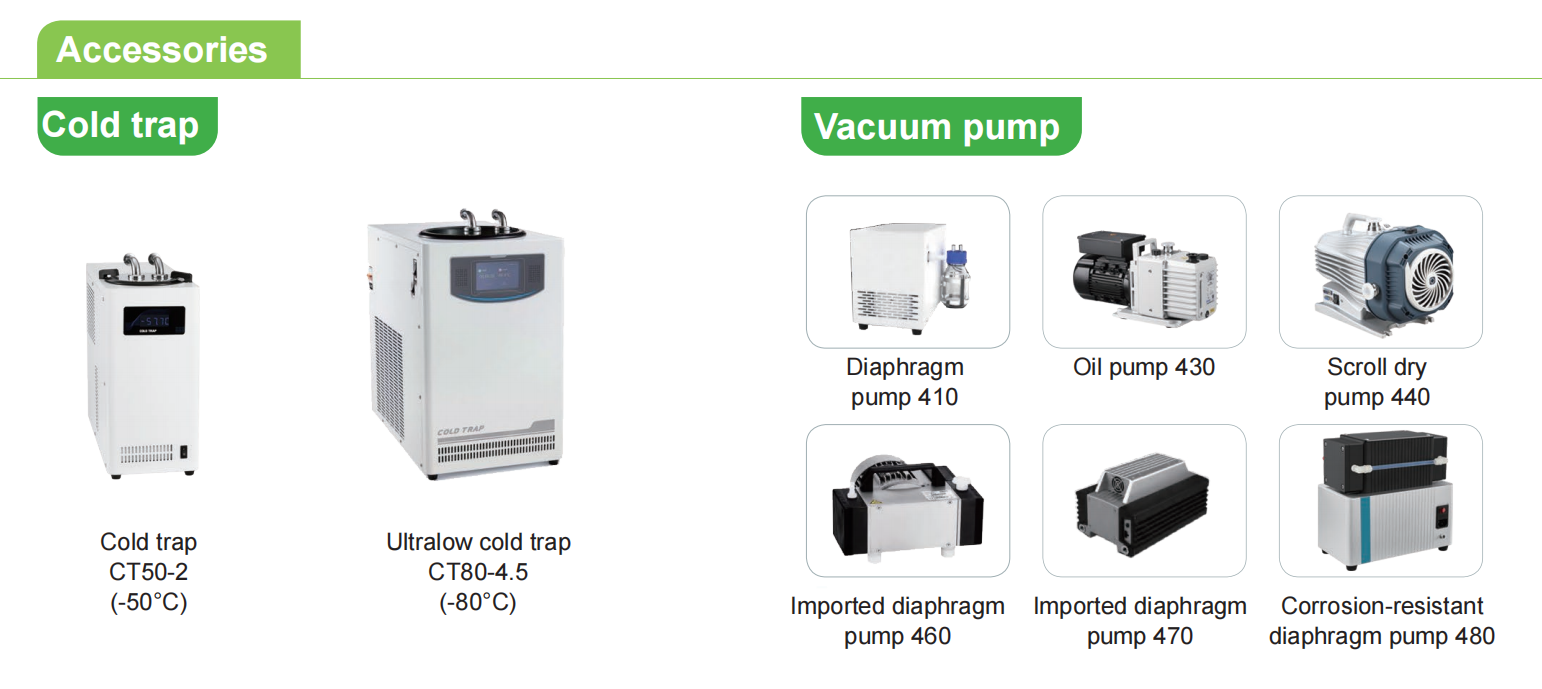

Cold trap: ultimate temperature -60℃, cold trap volume 2000ml
Max. Volume: 6×100ml

Technical Parameters

Speed range	800rpm~2000rpm	Ultimate vacuum	≤0.2mbar
Max. Centrifugal force	530×g	Noise	≤55dB(A)
Timing range	0~9999min	Power	1150W
Vacuum control range	0.1~100mbar	Power supply	AC220V 50Hz/60Hz 10A
Centrifugal imaging function	Y	Dimension（LDH）	481×370×294mm
Temperature control range	+5℃~+100℃		500×210×470mm
Temperature control precision	±1℃	Weight	61.3KG
