Cell Thawing Devive Thawlt

Cell Thawing Devive

Product Features

Anhydrous automatic thawing and resuscitation can reduce the risk of contamination. You just need place sample into corresponding slot of the cell thawing device.
Four independent slot channel can thaw four different samples at the same time, which equals 4 thawing device efficiency.
The screen displays four channels independently, allows real-time observation of sample state.
The automatic thawing during the whole process avoids the difference caused by human.
Expansion heating cover suits blood bag of different volume and different shape; the four-way air convection increases temperature uniformity and stabilizes sample recovery rate(blood bag).

Compare with Products on the market

Water Bath	Thawlt
The sample needs to be shaken artificially and taken out intermittently to observe the melting state,which is very easy to affect the resuscitation rate of the sample directly because of human operation.	The whole thawing process is fully automatic and thawing rate is stable.
Data control and alarm function is not available.	Real-time alarm function: data monitoring and alarm can reduce the impact on cell recovery rate of human improper operation.
The samples needs to be immersed in water for resuscitation, which may cause sample pollution.	No contact of water in the whole process, reducing the possibility of contamination.
Sample status can not be observed.	The screen real-time display sample state.
High power consumption.	120W power consumption, less than 3kW·h per day, energy saving.

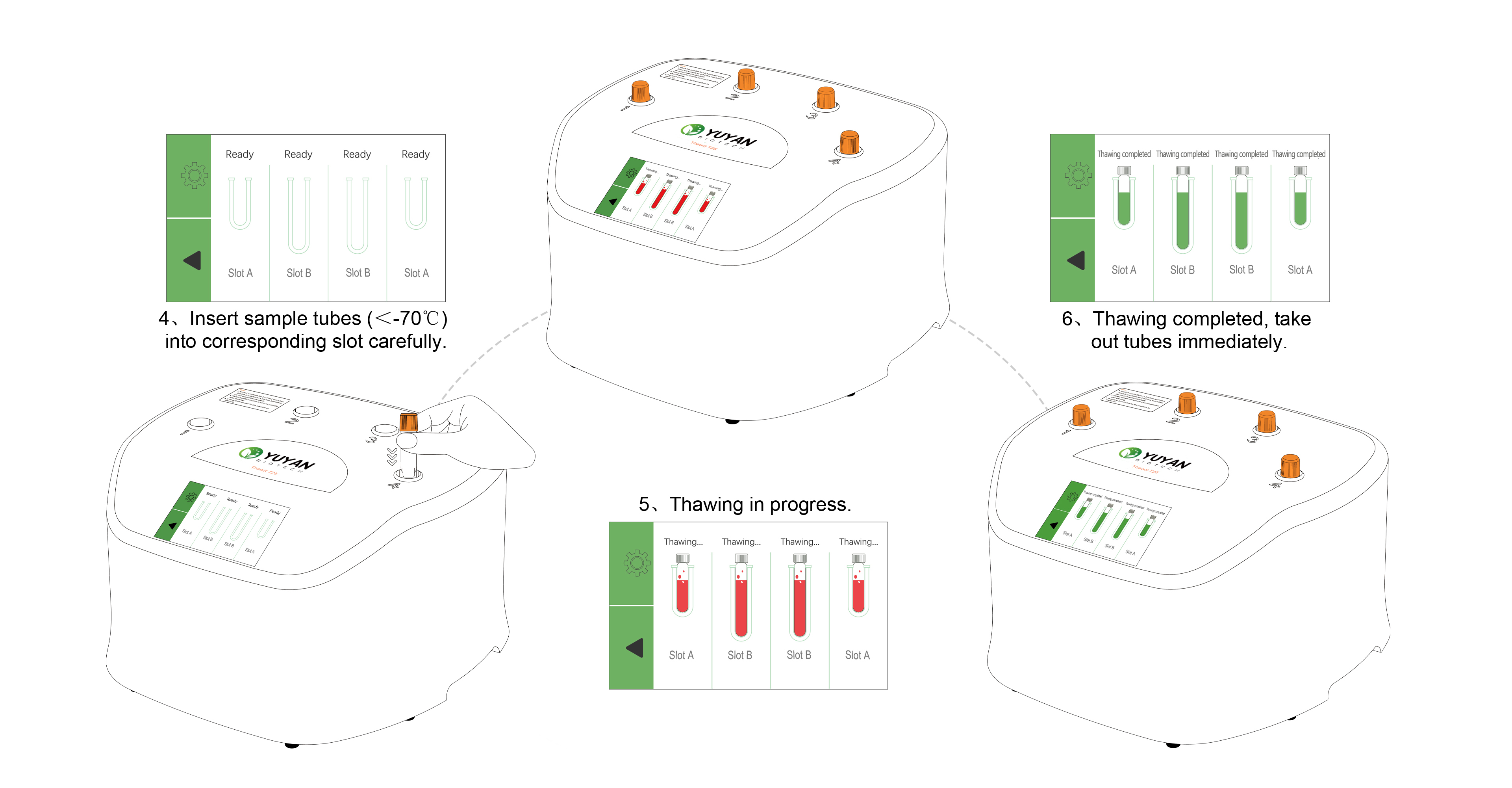

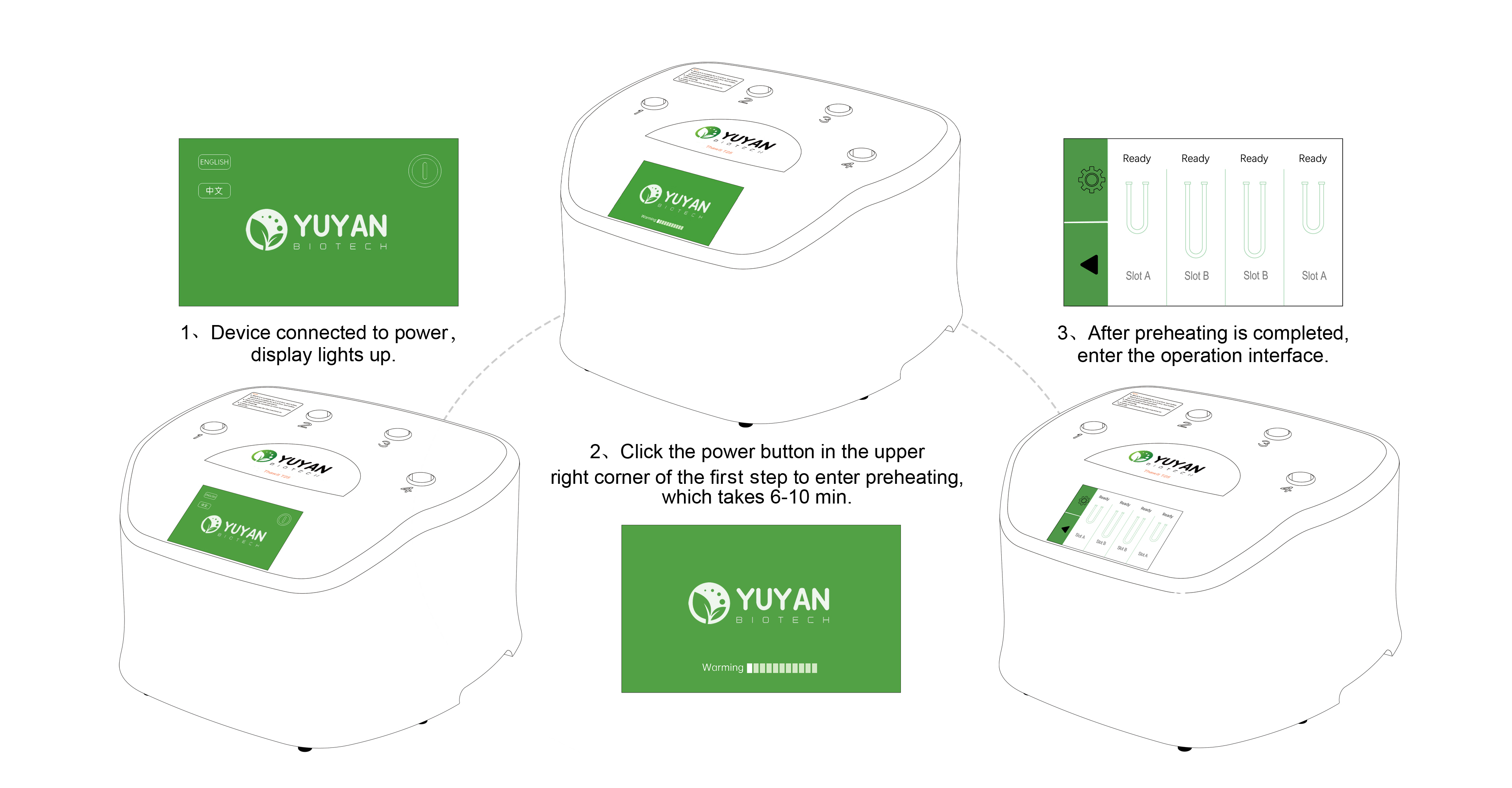

Operation Steps(Tube)

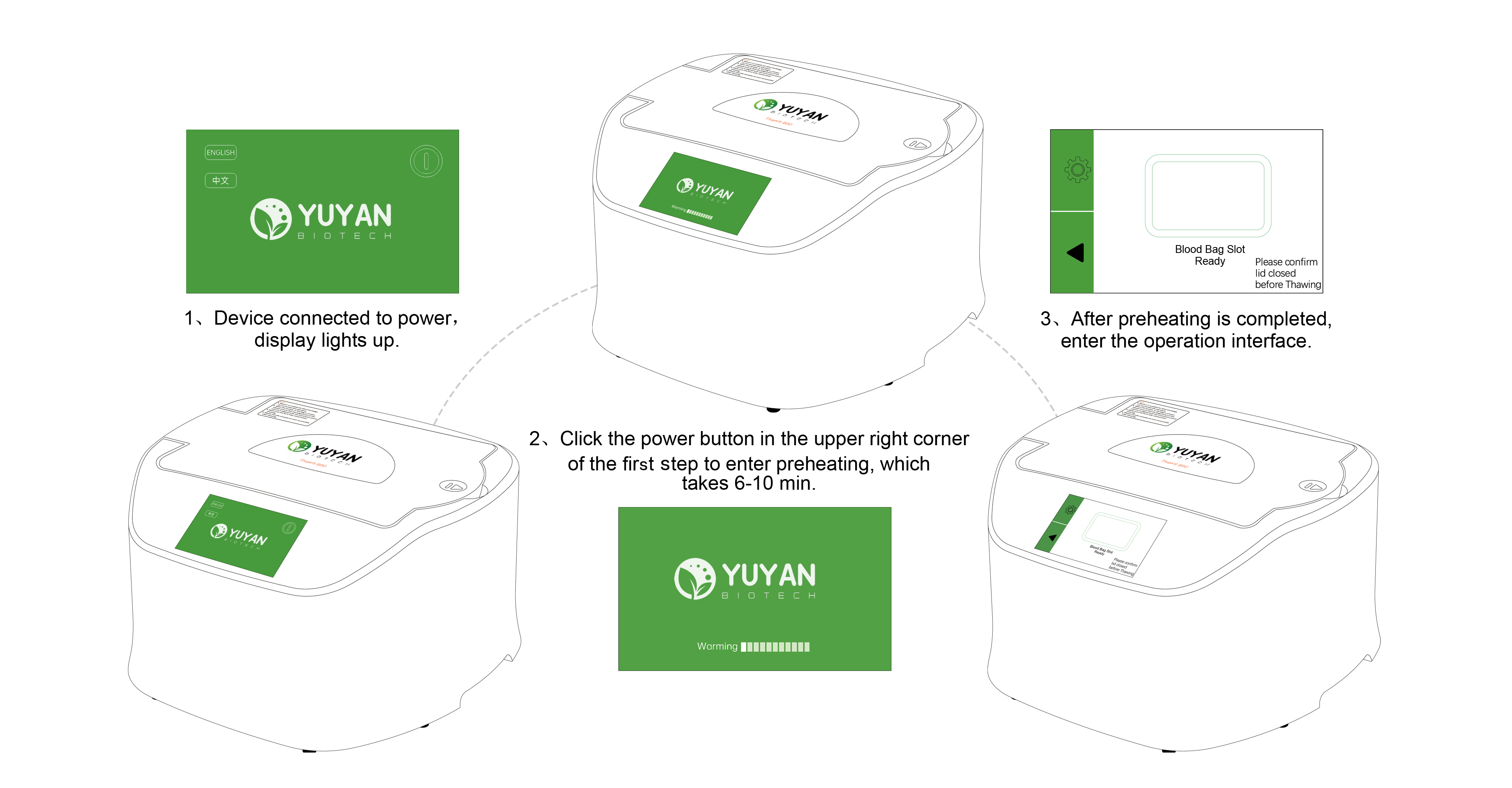

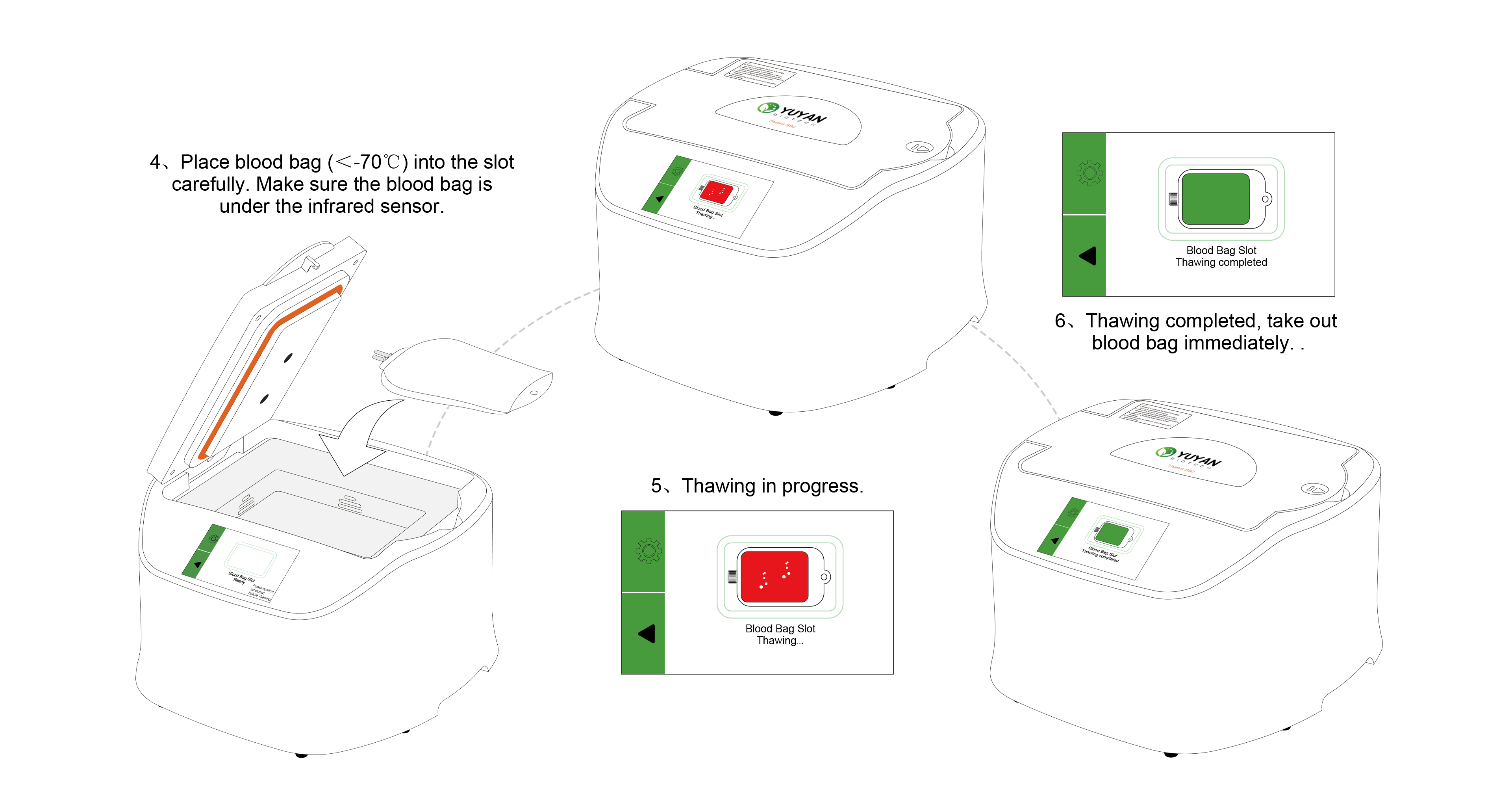

Operation Steps(Bag)

Product Parameter

Product Model		Thawlt T2		Thawlt T25		Thawlt T5		Thawlt B50
Tube capacity		1.5~2.0ml		A slot: 1.5~2.0ml B slot: 4.0~5.0ml		4.0~5.0ml		50ml
Sample Capacity		0.5~1.8ml		A slot: 0.5~1.8ml B slot: 2.0~4.5ml		2.0~4.5ml		15~45ml
Thawing time		≤2min		A slot:≤2min B slot:≤3min		≤2min		5~8min
Weight		3.3kg		3.4kg		3.3kg		2.9kg
Other Parameters
Thawing method	Dry heating method		Sample status after thawing		lce-water mixture		Temperature of operation		5°C~35°C; the room humidity is 75% (max.)
Storage	-20℃~60℃		Rated power		120W		Output current		15A
Dimension	L296xW270xH170mm		Screen		Touch screen real-time displays slot status.		Data export		Connect to PC to export the thawing data.
The maximum height	2km		Plug		US、UK、EU		Certification		CE
Thawing parameter setup	lce crystal size after thawing can be adjusted according to actual demands.				Thawing sample		If sample temperature is higher than -60'C.the device will not work but alarm.
Thawing completion	Notification sound, samples pop up automatically.				The input and output voltage(power adapter)		AC 100-240V/DC12V/50-60HZ
