Cell Thawing Devive ThawPro

  • Hits:14
  • Time:2024-10-14

Details

Cell Thawing Devive

Product Features

  • Anhydrous automatic thawing and resuscitation can reduce the risk of contamination. You just need place sample into corresponding slot of the cell thawing device.
  • Four independent slot channel can thaw four different samples at the same time, which equals 4 thawing device efficiency.
  • The screen displays four channels independently, allows real-time observation of sample state.
  • Ozone Sterilization,High efficiency:Ozone sterilization and disinfection can effectively kill bacteria and virus, providing comprehensive protection for your experimental accuracy.
  • Professional calibration Accurate and Reliable:We provide accurate temperature calibration functions to ensure stable performance of the equipment and reduce errors.
  • Dust Proof With One Cover:No need for cumbersome operations, you can enjoy all-round dust protection with just one cover.
  • Free Customization:User can customize cell thawing device with different thawing slots according to required sample container (see user customization page for more details)
  • Ice Crystal Size Adjustable:Ice crystal size after thawing can be adjusted according to actual demands.
  • Data Export Easy Control:This device can be connected to a PC to export thawing temperature curve data.
  • Temperature Protection Professional Intelligence:Users can set the temperature -X‘C that does not enter the working state. If the temperature of the thawing sample is higher than -X°C, the equipment will not enter the working state.

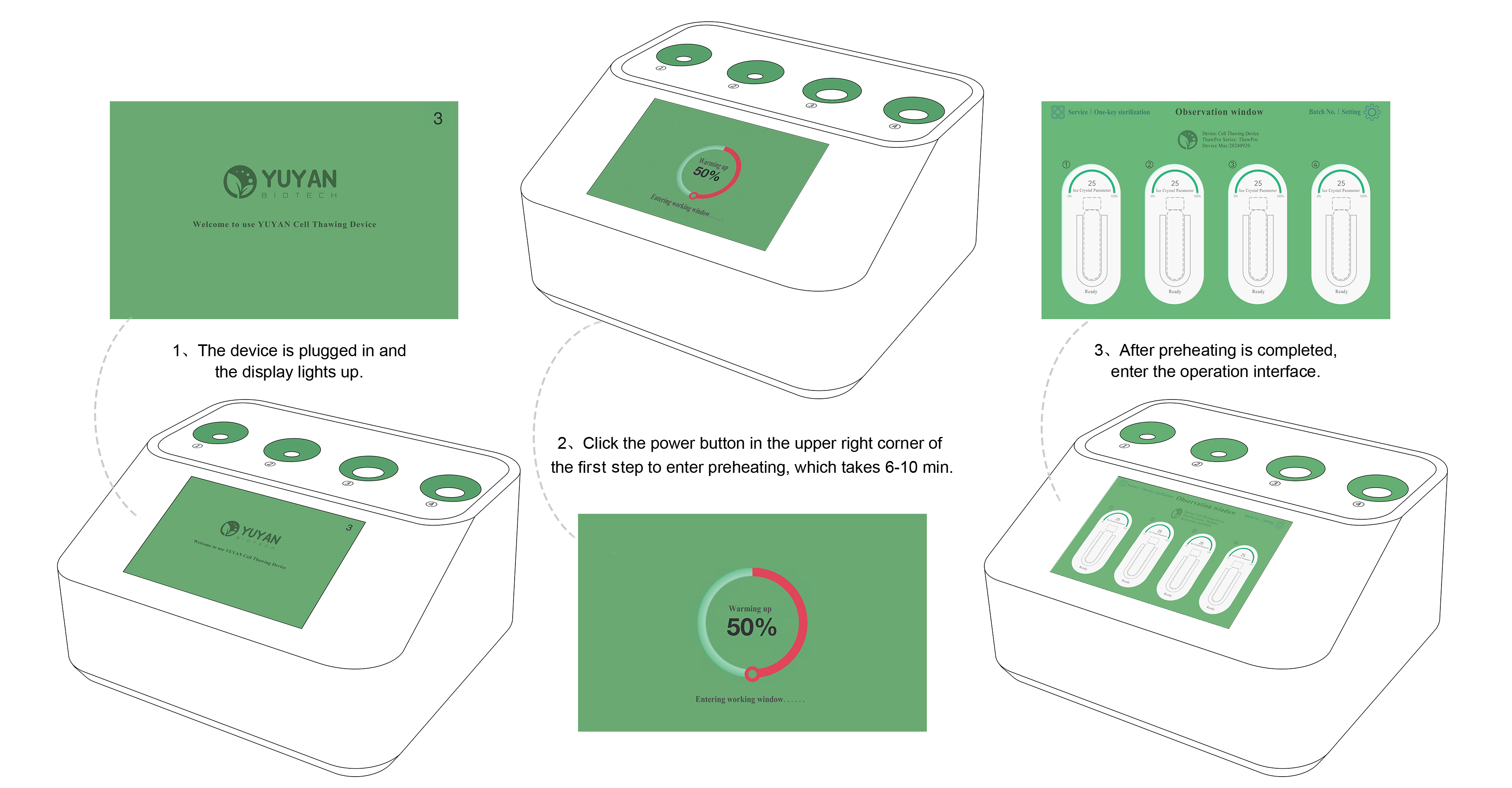

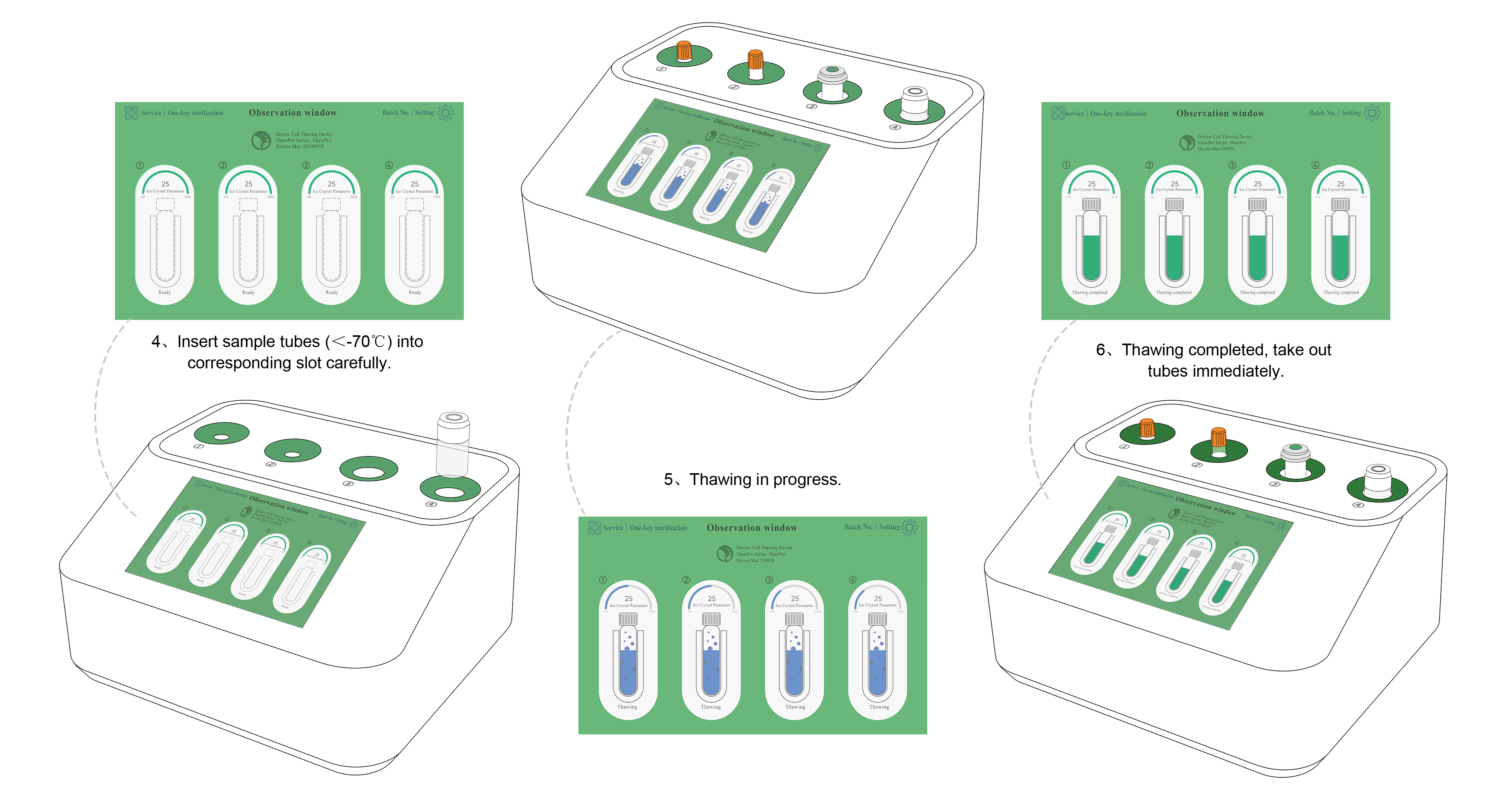

Operation Steps






Product Parameter

Cryotube Series

Model

Tube capacity

Sample

capacity

Thaw time

Weight

Max height

Temperature of operation

Storage temp

Output current

Plug

Rated power

Dimension

The input and output voltage(power adapter)

ThawPro T2

4X2ml tube

0.5ml~1.8ml

3min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro T5

4X5ml tube

2.5ml~4.5ml

3min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro T25

2X2ml tube

2X5ml tube

T2:0.5ml~1.8ml

T5:2.5ml~4.5ml

3min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ



COP Vial

Model

Tube capacity

Sample

capacity

Thaw time

Weight

Max height

Temperature of operation

Storage temp

Output current

Plug

Rated power

Dimension

The input and output voltage(power adapter)

ThawPro C2

4X2ml COP vial

0.5ml~1.8ml

3min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro C6

4X6ml COP vial

2.5ml-6ml

5min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro C10

4X10ml COP vial

2.5ml-10ml

8min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro C26

4X2ml COP vial

4X6ml COP vial

C2:0.5ml~1.8ml C6:2.5~6ml

8min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

Remarks: User can customize cell thawing device with different thawing slots according to required sample container



AT Vial

Model

Tube capacity

Sample

capacity

Thaw time

Weight

Max height

Temperature of operation

Storage temp

Output current

Plug

Rated power

Dimension

The input and output voltage(power adapter)

ThawPro A1

4X1ml cryogenic vials

0.5ml~1ml

3min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro A2

4X2ml cryogenic vials

1.5ml-2ml

3min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro A6

4X6ml cryogenic vials

2.5ml-6ml

5min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro A10

4X10ml cryogenic vials

2.5ml-10ml

8min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

ThawPro A12

4X1ml cryogenic vials

4X2ml cryogenic vials

A1: 0.5ml-1ml A2:1.5ml~2ml

8min

3.3kg

2km

5-35; the room humidity is 75%(max.)

-20~-60

15A

USUKEU

300W

L323XW288 XH175mm

AC 100-240V/ DC12V/50-60HZ

Remarks: User can customize cell thawing device with different thawing slots according to required sample container
