Freeze Dryer
Pro Series

  • Hits:403
  • Time:2024-4-7

Details

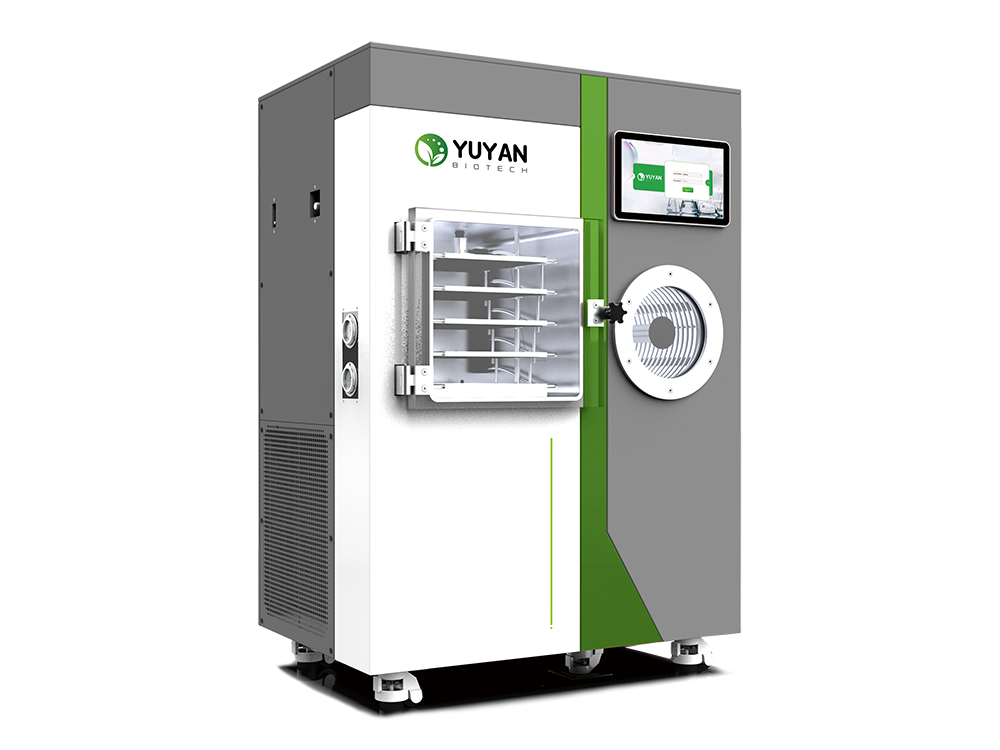

Pro Series -- a pilot freeze dryer which can meet freeze drying requirements of 90% samples!

Lab pilot freeze dryer with cold trap of -85 °C, suitable for freeze drying of water solutions as well as organic samples. Small footprint makes it easy to move, fitting in most research labs or production plant. Whole process in-situ, including pre-freezing, sublimation, secondary drying, ensures reproductive results. Advanced Android control system with mass memory can store up to 1000 protocols, real-time display and monitor all freeze drying parameters.

General Features

  • Novel appearance design with separate drying chamber and cold trap, whole piece of only 1.2 m³makes the freeze dryer small and compact. easy to carry and fits in labs of all sizes.
  • Square drying chamber made of medical grade 316 stainless steel. perfect sealing. high temperature stability.
  • Powerful shelf temperature control: from pre-freezing to sublimation to secondary freeze drying (-50 to 60°C) all in situ, ensuring perfect repeatability and results.
  • Inbuilt hydraulic stoppering system meets the requirement of vial sealing under vacuum.
  • Shelf intelligent PID temperature control system enables independent temperature control of every shelf, silicon oil circulating inside shelves ensures precise temperature control and stable heating, no temperature overshooting
  • Chamber door is made of organic glass. corrosion-resistant and transparent. easy to observe experiment process
  • *Inbuilt cold trap system has stronger capture ability, energy and environment saving.
  • Observation window with airtight hollow design can prevent frosting effectively, has better sealing result, easy to observe experiment process
  • Automatic cold trap one-key defrosting, save time between batches
  • Inert gas backfilling protects the sensitive products to the maximum extent
  • Intelligent vacuum regulation can adjust vacuum during sublimation and secondary freeze drying process, which can avoid bubbles and blowups of samples, accelerating freeze drying efficiency. (optional)

Controller Features

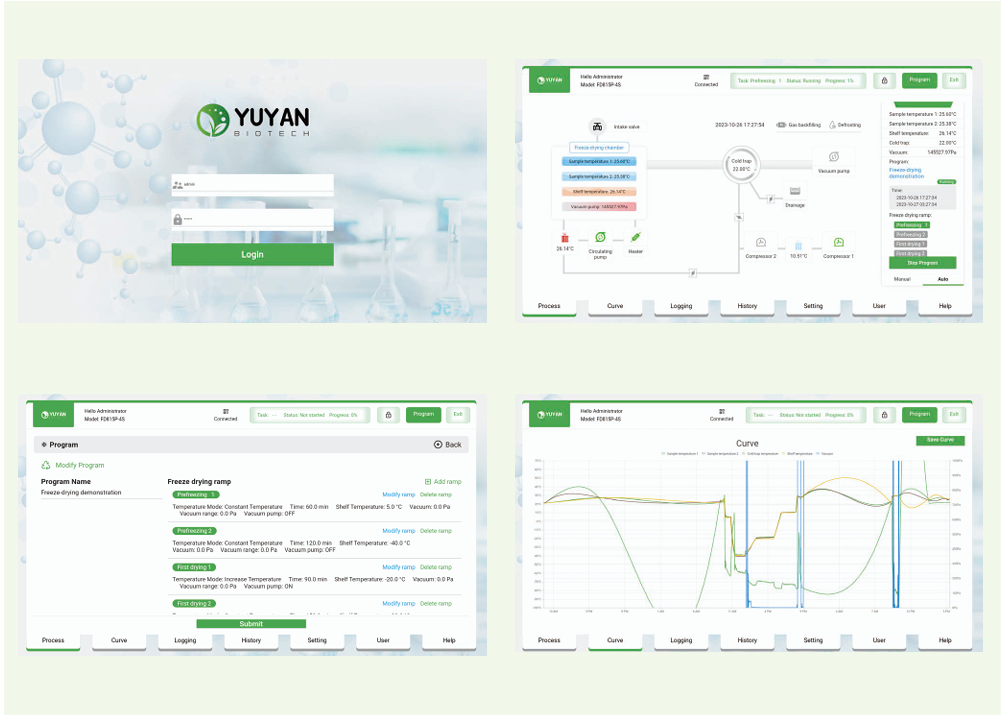

  • 20 Inch HD intelligent color touch screen, loaded with Android system, user-friendly panel, easy to operate. experiment data and operation logs can be output by USB drive.
  • Real-time display vacuum. cold trap temperature sample temperature, alarm information.
  • Curve optimization technology can control cooling rate in pre-freeze stage and heating rate and vacuum in sublimation and secondary freeze drying stage.
  • Unique lyophilization operation system can edit and store up to 1000 protocols, each contains 50 ramps. Freeze drying process can be paused to rectify parameters.
  • Freeze drying data can be monitored and saved automatically. easy to track whole freeze drying process.
  • 3-level user access management, making all the data real, safe and trackable
  • Wireless monitor system. equipped with wifi wireless control module. mobile APP is available to real-time monitor freeze drying parameters such as vacuum, cold trap temperature, sample temperature, freezing drying duration, etc.(Optional)
  • App will push notification and send message when power supply fails, enabling operator react  immediately and save samples optional


Technical Parameters - - PRO Series

Model

FD815P-3S

FD815P-4S

FD815P

Cold trap temperature

-85°C(Ambient≤23℃)

Ultimate vacuum

1Pa

Inert gas backfilling

0.2um

Shelf dimension

350mmx 400mm

370x380mm

Shelf Qty.

3+1

4+1

5

*Max freeze drying area

0.36㎡

0.48㎡

0.70㎡

Shelf distance

95mm

70mm

70mm

Shelf temperature range

-50-60°C

Max. Ice capacity

15kg

Pump speed

4L/s

Hydraulic stoppering

Yes

Yes

N/A

Chamber dimension

434×496×441mm

Power

5KW

Power supply

AC220V±10%, 50Hz

Dimension

1150×795×1644mm

Weight

500kg
