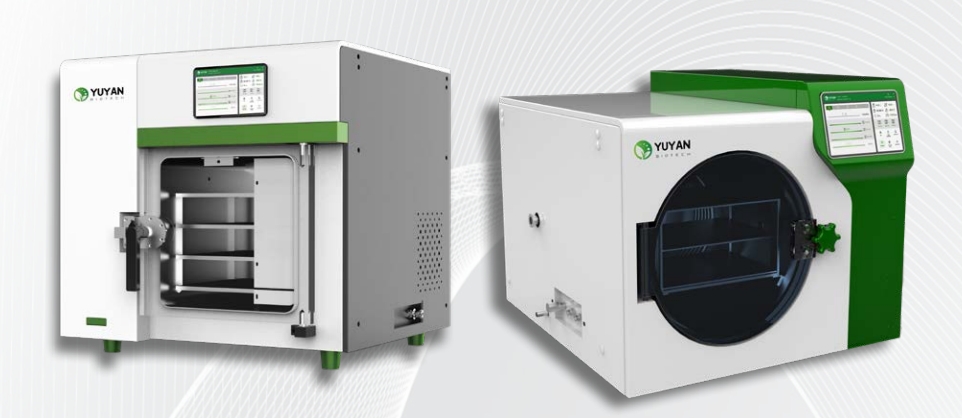

Freeze Dryer
Eco Series

  • Hits:299
  • Time:2024-4-7

Details

General Features

  • Minimum space requirements: Chamber structure makes the freeze dryer small and compact, easy to carry and fits in labs of all sizes.
  • Square drying chamber made of medical grade 316L stainless steel, perfect sealing, high temperature stability.
  • Parallel design of shelf and cold trap, ensuring maximum temperature uniformity of samples.
  • Chamber door is made of organic glass, corrosion-resistant and transparent, easy to observe experiment process
  • Automatic cold trap one-key defrosting, save time between batches
  • Inert gas backfilling protects the sensitive products to the maximum extent

Controller Features

  • 9 inch HD intelligent color touch screen, loaded with Android system, user-friendly panel, easy to operate. Experiment data and operation logs can be output by USB drive.
  • Real-time display vacuum, cold trap temperature, sample temperature, alarm information.
  • Unique lyophilization operation system can edit and store up to 1000 protocols, each contains 50 ramps. Freeze drying process can be paused to rectify parameters.
  • Freeze drying data can be monitored and saved automatically, easy to track whole freeze drying process.
  • 3-level user access management, making all the data real, safe and trackable
  • Wireless monitor system, equipped with wifi wireless control module, mobile APP is available to real-time monitor freeze drying parameters such as vacuum, cold trap temperature, sample temperature, freezing drying duration, etc.(Optional)
  • App will push notification and send message when power supply fails, enabling operator react immediately and save samples (optional)



Technical Parameters - - Eco Series

Model

FD505

FD805

FD503

FD803

Cold trap temperature

-60°C(Ambient≤23℃)

-85°C(Ambient≤23℃)

-60°C(Ambient≤23℃)

-85°C(Ambient≤23℃)

Ultimate vacuum

5Pano load

Inert gas backfilling

0.2um

0.2um(optional)

Shelf dimension

220×320mm

250×200mm

Shelf Qty.

4

3

*Max freeze drying area

0.28

0.15

Shelf distance

70mm(can be adjusted)

Shelf temperature control

Natural temperature

Max. Ice capacity

5kg

3kg

Pump speed

2L/s

Chamber dimension

240×380×385mm

φ320*370(depth)

Power

1.3Kw

1.2Kw

Power supply

AC220V±10%, 50Hz

Dimension

740×750×785mm

630×675×535mm

Weight

150kg

86kg
