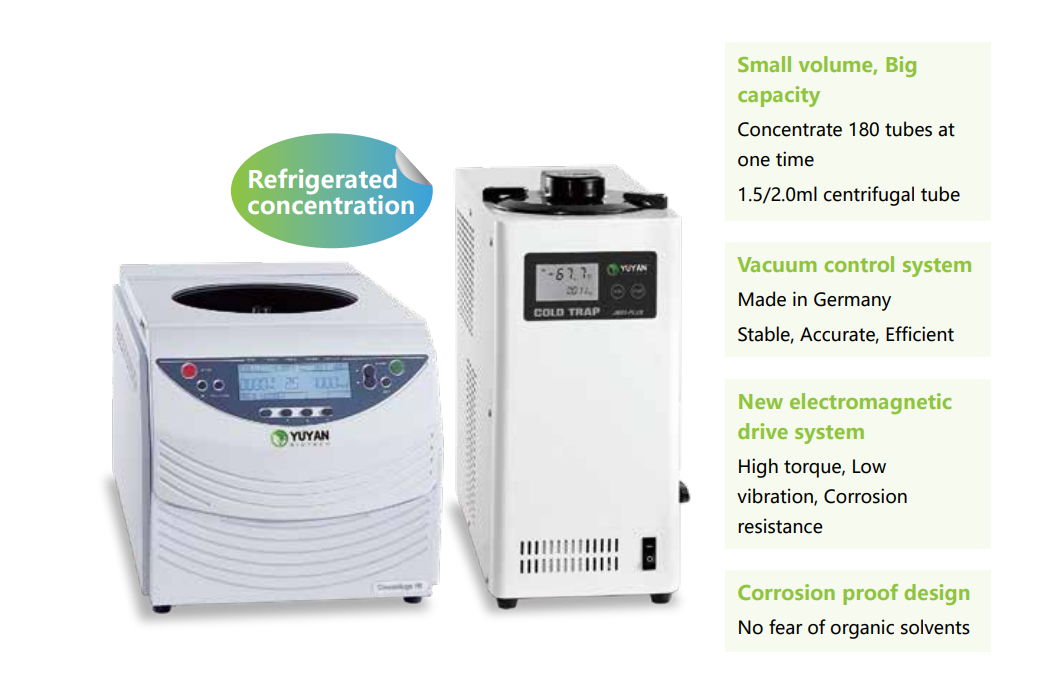

Refrigerated Centrifugal
Vacuum Concentrator
Concenfuge 1R

Small volume, Big capacity

Concentrate 180 tubes at one time

1.5/2.0ml centrifugal tube

Vacuum control system

Made in Germany

Stable, Accurate, Efficient

New electromagnetic

drive system

High torque, Low vibration,

Corrosion resistance

Corrosion proof design

No fear of organic solvents

Product Features

Fast control system, more intelligent, accurate and efficient
Refrigerated concentration, suitable for sensitive samples
Built-in automated vacuum control system, control range 0.1~100mbar, control precision ±0.1mbar
Imported pressure relief valve with automatic vacuum release, safe and easy to operate
2-stage temperature control, protecting sample safety effectively
4 groups program shortcut key, 30 groups user-defined programs
Centrifugal imaging function, observing concentration progress without power off the concentrator

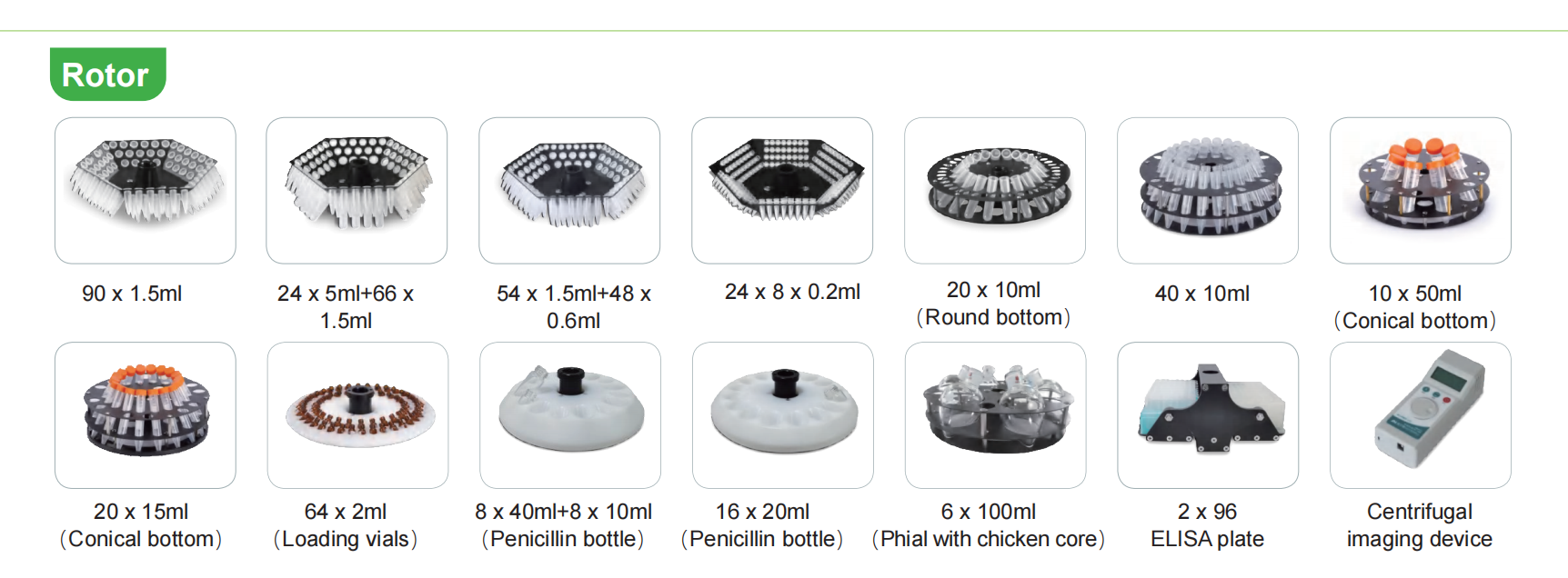

Up to 20 kinds of rotors are available to meet different experiment demands

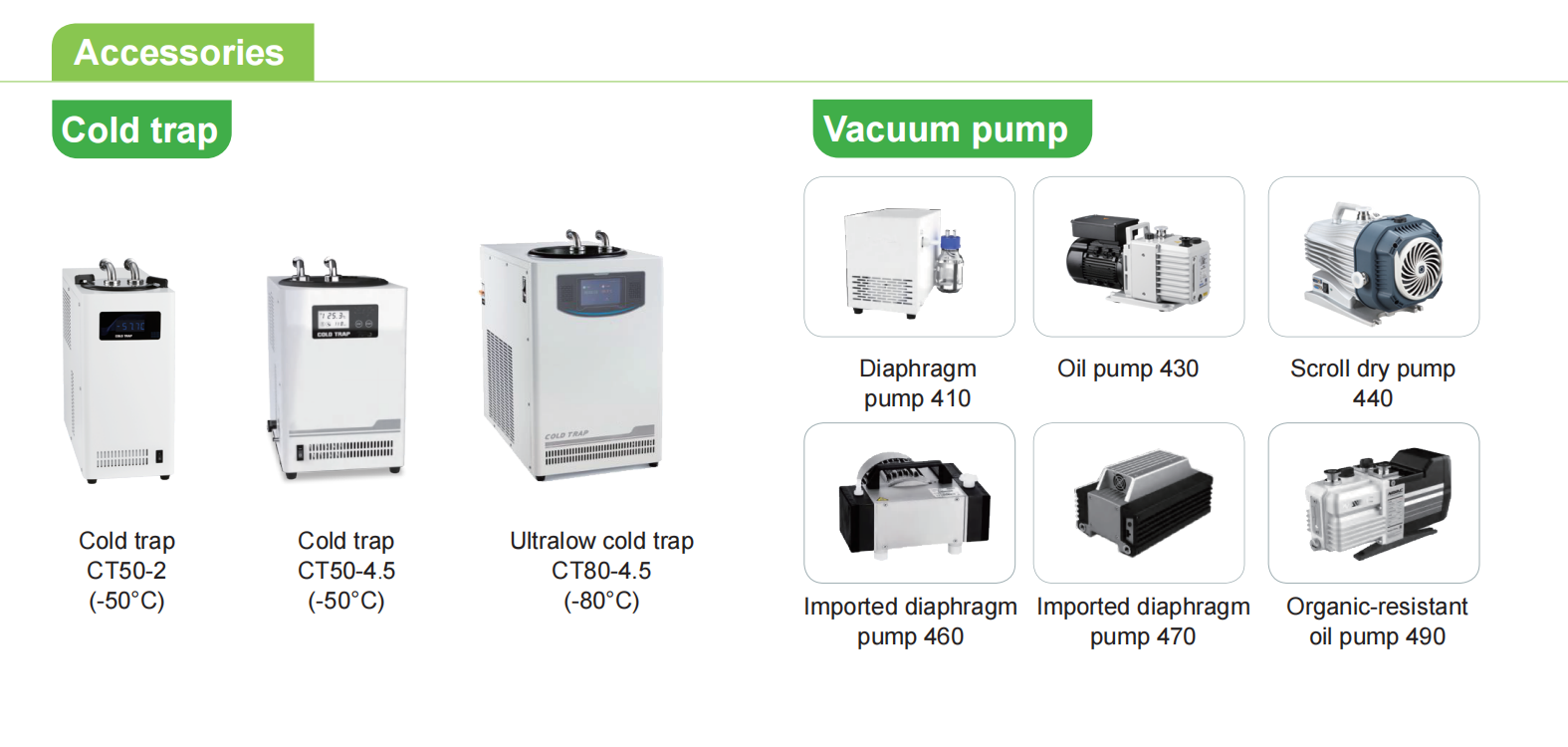

Cold trap: ultimate temperature -60℃, cold trap volume 2000ml
Max. Volume: 6×100ml

Technical Parameters

Speed range	800rpm~2000rpm	Temperature control precision	±1℃
Max. Centrifugal force	530×g	Ultimate vacuum	≤0.2mbar
Timing range	0~9999min	Noise	≤60dB(A)
Vacuum control range	0.1~100mbar	Power	1200W
Chamber precool function	Y	Power supply	AC220V 50Hz/60Hz 10A
Centrifugal imaging function	Y	Dimension（LDH）	608×370×348mm 500×210×470mm
Temperature control range	+5℃~+100℃	Weight	81.3KG
