Refrigerated Centrifugal
Vacuum Concentrator
Concenfuge 1R

  • Hits:276
  • Time:2024-4-7

Details

Small volume, Big capacity

Concentrate 180 tubes at one time

1.5/2.0ml centrifugal tube

Vacuum control system

Made in Germany

Stable, Accurate, Efficient

New electromagnetic

drive system

High torque, Low vibration,

Corrosion resistance

Corrosion proof design

No fear of organic solvents


Product Features

  • Fast control system, more intelligent, accurate and efficient
  • Refrigerated concentration, suitable for sensitive samples
  • Built-in automated vacuum control system, control range 0.1~100mbar, control precision ±0.1mbar
  • Imported pressure relief valve with automatic vacuum release, safe and easy to operate
  • 2-stage temperature control, protecting sample safety effectively
  • 4 groups program shortcut key, 30 groups user-defined programs
  • Centrifugal imaging function, observing concentration progress without power off the concentrator

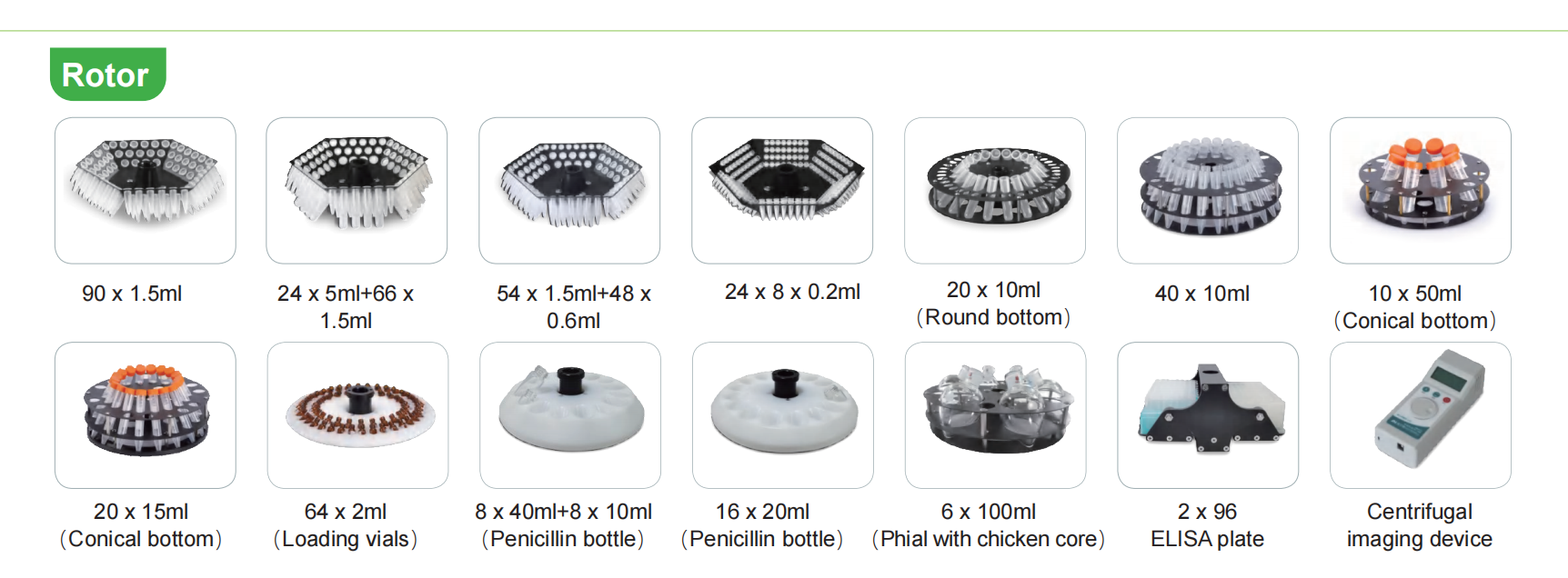

  • Up to 20 kinds of rotors are available to meet different experiment demands
  • Cold trap: ultimate temperature -60℃, cold trap volume 2000ml
  • Max. Volume: 6×100ml


Technical Parameters

Speed range

800rpm~2000rpm

Temperature control precision

±1℃

Max. Centrifugal force

530×g

Ultimate vacuum

≤0.2mbar

Timing range

0~9999min

Noise

≤60dB(A)

Vacuum control range

0.1~100mbar

Power

1200W

Chamber precool function

Y

Power supply

AC220V 50Hz/60Hz 10A

Centrifugal imaging function

Y

Dimension(L*D*H)

608×370×348mm

500×210×470mm

Temperature control range

+5℃~+100℃

Weight

81.3KG
