Cube Series

  • Hits:177
  • Time:2024-4-7

Details

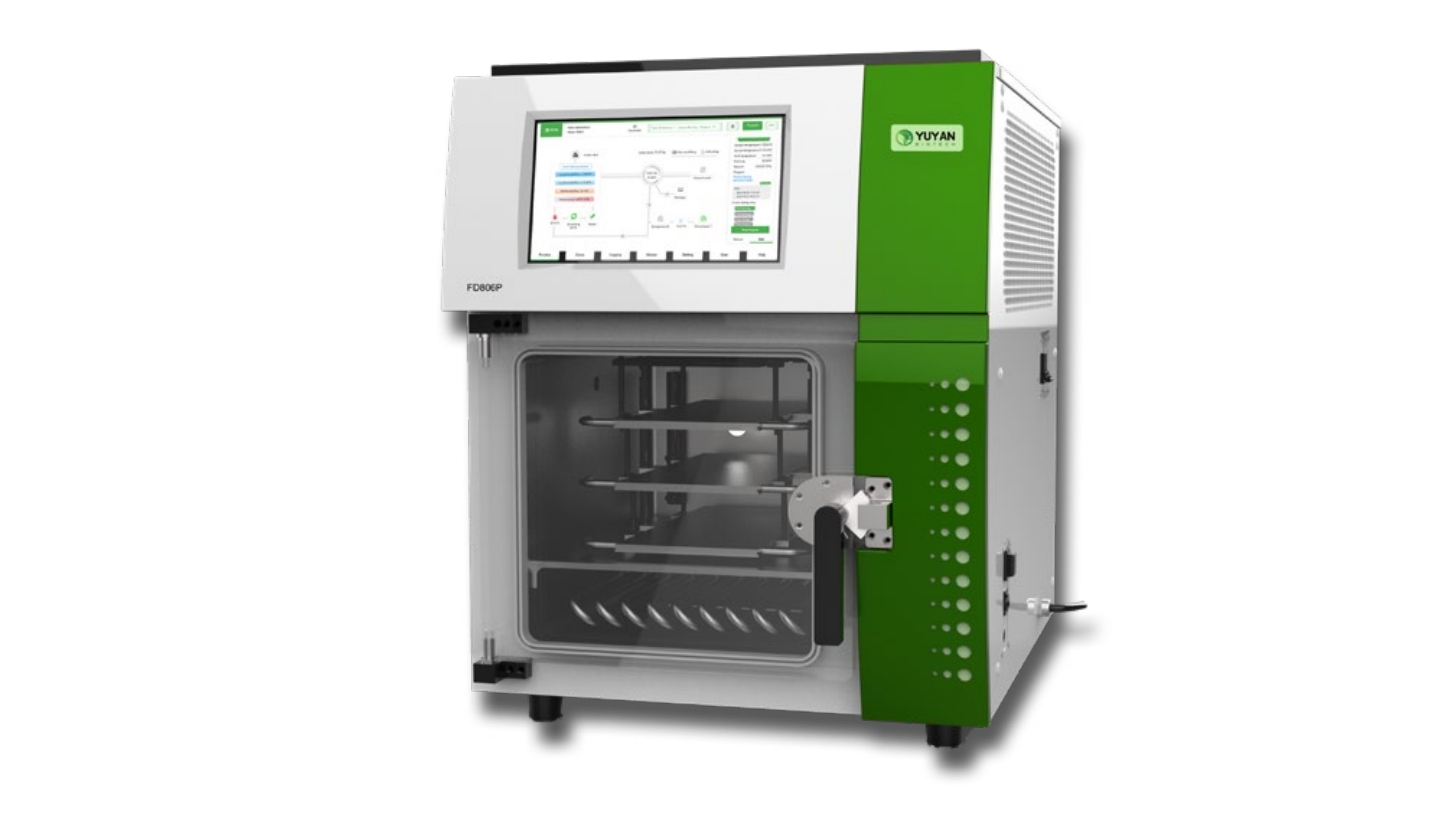

Cube Series-- The superb equipment for R&D and small batch production

Compact bench top pilot freeze dryer is a perfect small production system applied in research and development for new products. Whole process in-situ, including pre-freezing, sublimation, secondary freeze drying, ensures reproducible results. Advanced Android control system with mass memory can store upto 1000 protocols, real-time display and monitor all freeze drying parameters. The best ever pilot freeze dryer that suits perfectly in your lab!

General Features

  • Minimum space requirements: Chamber structure of only 0.6 m³ makes the freeze dryer small and compact. easy to carry and tits in labs of all sizes.
  • Square drying chamber made of medical grade 316L stainless steel, perfect sealing, high temperature stability.
  • Powerful shelf temperature control: from pre-freezing to sublimation to secondary freeze drying all in situ, ensuring perfect repeatability and results.
  • Multiple freeze drying tasks, including shelf drying, flasks and vial stoppering.
  • Shelt Intelligent PID temperature control system enables independent temperature control of every shelf, ensuring preciser temperature control and stable heating, no temperature overshooting
  • Chamber door is made of organic glass, corrosion-resistant and transparent, easy to observe experiment process
  • Vial stoppering: hydraulic stoppering function can perfectly meet sealing requirements and sensitive samples (Optional)
  • Automatic cold trap one-key defrosting, save time between batches
  • Inert gas backfilling protects the sensitive products to the maximum extent
  • Efficient condenser design: condenser coils are placed below shelves, which can shorten drying process and prevent vapors from entering into pump. 2 cold trap temperature are available at your option: -60°C and -80°C
  • Intelligent vacuum regulation can adjust vacuum during sublimation and secondary freeze drying process, which can avoid bubbles and blowups of samples, accelerating freeze drying efficiency. (optional)

Controller Features

  • 10 inch HD intelligent color touch screen, loaded with Android system, user-friendly panel, easy operate. experiment data and operation logs can be output by USB drive.
  • Real-time display vacuum. cold trap temperature, sample temperature, alarm information.
  • Curve optimization technology can control cooling rate in pre-freeze stage and heating rate and vacuum in sublimation and secondary freeze drying stage.
  • Unique lyophilization operation system can edit and store up to 1000 protocols, each contains 50 ramps. Freeze drying process can be paused to rectify parameters.
  • Freeze drying data can be monitored and saved automatically, easy to track whole freeze drying process.
  • 3-level user access management, making all the data real, safe and trackable
  • Wireless monitor system. equipped with 4G/wifi wireless control module. mobile APP is available to real-time monitor freeze drying parameters such as vacuum, cold trap temperature, sample temperature. freezing drying duration, etc.(Optional)
  • App will push notification and send message when power supply fails, enabling operator react immediately and save samples (optional)

1-1.jpg 1-2.jpg

1-3.jpg 1-4.jpg

Technical Parameters—Cube Series

Model

FD506P

FD806P-3

FD806P-2

Cold trap temperature

-60°C

-80°C

Ultimate vacuum

≤ 5Pa (no load)

Inert gas backfilling

0.2um

Shelf dimension

320×400mm

230mm x365mm

230mm x365mm

Shelf Qty.

3

2

*Max freeze drying area

0.36 m

0.2 m

0.13 m

Shelf distance

60mm

90mm

Shelf temperature range

-40~70°C

-50~60°C

Max. Ice capacity

6kg

Pump speed

2L/s

Flask

4×50ml, 4× 100ml, 4×250ml, 4× 500ml (Optional)

Hydraulic stoppering

Optional

Optional

Optional

Chamber dimension

359×450×364mm

Power

2.8KW

Power supply

AC220V±10%, 50Hz

Dimension

630×740×850mm

Weight

177kg
