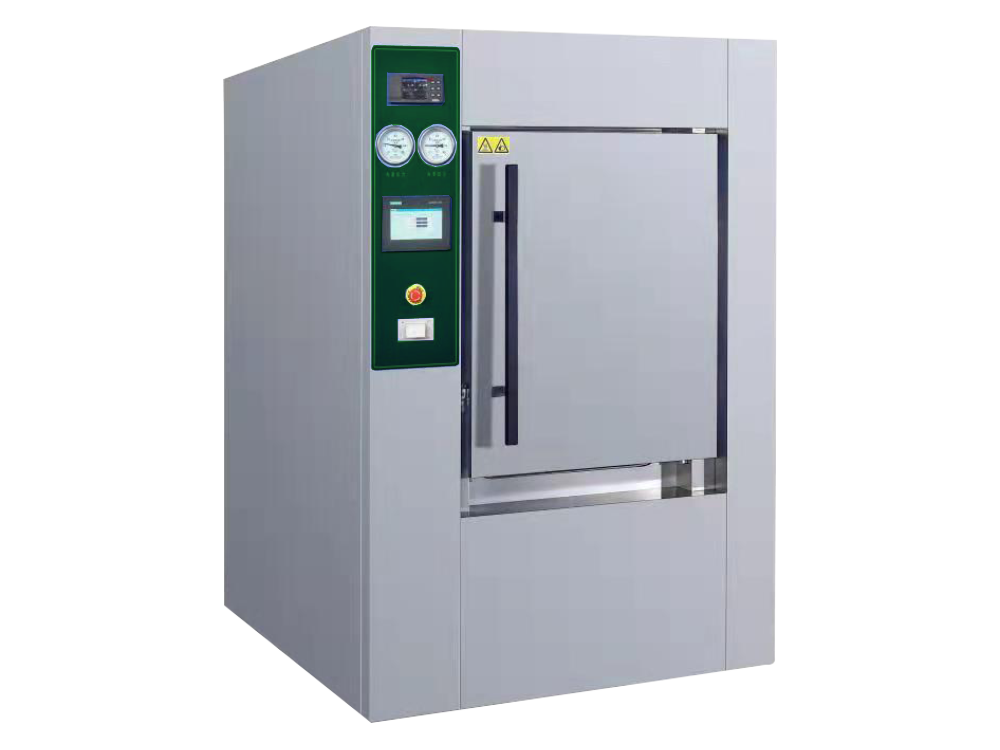

Pulsating Autoclave
Power door type

Hits：40
Time：2024-10-23

Details

Overview

The YAC-PPD series pulsating vacuum autoclave uses saturated steam as the sterilization medium. Through pulsating vacuum, saturated steam completely penetrates the surface of the items, killing all microorganisms and their spores under high pressure and high-temperature saturated steam. The sterilization effect is reliable, making it the most effective method among physical sterilization methods.

It is widely used in pharmaceuticals, biotechnology, healthcare, research, laboratory animals, and other fields for sterilizing fabrics, instruments, lumen instruments, rubber, liquids, animal cages, etc.

Key Features

Motorized door with removable gear engagement sealing structure, motor-driven door lifting and lowering with chain.
Double-door pass-through type with pressure safety interlock, liquid program with temperature door safety interlock, double-door interlock.
Inflation pressure drives automatic sealing with a new high-quality tear-resistant silicone rubber circular hollow door seal. The surface is specially coated for wear resistance and smoothness, providing better sealing effects and a longer lifespan, lasting up to 1500 cycles.
The main structure is rectangular with, European-style circular reinforcing ribs and flarye-free structure. The sealing groove is directly welded to both ends of the circular jacket.
Control System: Siemens programmable logic controller (PLC) and color touch screen. The entire process is automatically controlled with real-time display of operation status, operation curves, and parameters such as temperature, pressure, and time.
Intelligent Maintenance System: Equipped with MNcold IoT remote monitoring and maintenance module, allowing real-time access to device information from computers, tablets, or smartphones. This includes real-time and historical operation data, fault notifications, and remote software upgrades.
Various sterilization programs for fabrics, instruments, lumen instruments, rubber, liquids, custom programs and test programs such as BD tests, vacuum leak tests, etc.
Pulsation modes: negative pressure pulsation, crossover pressure pulsation, and positive pressure pulsation modes, with an air exclusion rate greater than 99.99%, saving steam consumption and improving steam sterilization and drying efficiency.
Flash steam vacuum drying technology, fabric dryness less than 0.6%, instrument dryness less than 0.1%.
Real-time process data printing through built-in printer. Pharmaceutical clients can use paperless recorders.
Pipeline system: stainless steel sanitary pipes, clamp connections, all welds made by automatic pipe welding machine; major control valves are form well-known brands.
Supply System Detection and Alarm System: Equipped with steam, water source, and power phase sequence detection alarm devices. If the supply system does not meet the equipment's operating conditions, automatic alarms will be triggered, preventing program startup and terminating program operation.
Automatic drainage temperature adjustment system, drainage temperature < 60°C.

Technical Parameters

Chamber Design Pressure	-0.1/0.3MPa	Temperature Display Accuracy	0.1℃
Jacket Design Pressure	0.3MPa	Pressure Display Accuracy	0.1KPa
Built-in Steam Generator(if any)	1.0 MPa	Sterilization Temperature Control Accuracy	±02℃
Design Temperature	150℃	Temperature Uniformity	±1℃
Maximum Operating Temperature	139℃	Negative Pressure Pulsation Vacuum	Amplitude -80~0KPa, frequency 3~9
Maximum Operating Pressure	0.25MPa	Crossover Pressure Pulsation	Amplitude -80~80KPa, frequency 1~9
Chamber Safety Valve Opening Pressure	0.28MPa	Positive Pressure Pulsation	0~9
Jacket Safety Valve Opening Pressure	0.28 MPa	Ultimate Vacuum	-96 KPa

Model	Chamber Dimensions W× H× D	Volume (m³)	Overall Dimensions L × W × H	Weight Kg	Steam Consump- tion Kg/C	Water Consump- tion Kg/C	Power Supply
YAC-0.25PPD	550×550×850	0.25	1250×1350×1800	750	16	100	380V,50HZ 2KW+(24KW)
YAC-0.3PPD	550×550×1000	0.3	1360×1350×1800	800	18	120	380V,50HZ 2KW+(24KW)
YAC-0.45PPD	652×690×1000	0.45	1360×1400×2000	850	22	180	380V,50HZ 2KW+(30KW)
YAC-0.6PPD	610×910×1200	0.66	1500×1350×1900	1200	35	320	380V,50HZ 3KW+(36KW)
YAC-0.8PPD	610×910×1500	0.8	1800×1350×1900	1350	47	400	380V,50HZ 3.5KW(48KW)
YAC-1.0PPD	610×910×1800	1.0	2100×1350×1900	1550	55	500	380V,50HZ 3.5KW(54KW)
YAC-1.2PPD	680×1180×1500	1.2	1800×1420×2000	1650	65	600	380V,50HZ 3.5KW(72KW)
YAC-1.5PPD	680×1180×1850	1.5	2100×1420×2000	1850	80	750	380V,50HZ 4KW(90KW)
YAC-2.0PPD	900×1380×1620	2.0	1970×1750×2200	2300	106	1000	380V,50HZ 4.5Kw
YAC-2.5PPD	900×1380×2050	2.5	2350×1750×2200	2700	132	1250	380V,50HZ 6Kw
YAC-3.0PPD	900×1380×2420	3.0	2750×1750×2200	3500	160	1500	380V,50HZ 8Kw
YAC-4.0PPD	900×1380×3250	4.0	3550×1850×2200	4500	190	1750	380V,50HZ 8Kw
YAC-5.0PPD	900×1380×4040	5.0	4350×1850×2200	5500	220	2000	380V,50HZ 12Kw
YAC-6.0PPD	900×1380×4850	6.0	5150×1850×2200	6500	250	2250	380V,50HZ 14Kw
